Specialty Gas Two Gauge CGA580 Nitrogen High Pressure Regulator

Place of Origin : Guangdong, China (Mainland)

Brand Name : AFK

Model Number : R11

Supply Ability : 2000 Piece/Pieces per Week

Packaging Details : Each piece with a PP bag first, then put in a small box, outside is in carton.

MOQ : 1 - 9 Pieces

Price : Negotiable

Certification : CE

Material : 316L SS

Maximum inlet pressure : 3000, 2200, 500PSI

output pressure : 0-25,0-50,0-100, 0-250, 0-500PSI

working temperature : -23~+74 deg C

Applied gas : pure gases, standard gases, corrosive gases and so on

bonnet material : ss316L

seat : PCTFE

Spring : ss316L

O-ring : viton

strainer : 316L (um)

Port : Shenzhen

Contact Now

Product Description

R11 series stainless steel pressure regulator, sinlge stage diphragm reducing structure, stainless steel diaphragm pressure transmit, stable outlet pressure, suitable for purity gas, standard gas and corrosive gas etc.

Technical parameters

Maximum Inlet Pressure	500,3000psig
Outlet Pressure Ranges	0~25, 0~50, 0~50,0~250,0~500psig
Safety test pressure	1.5 times maximum inlet pressure
Operating Temperature	-40°F to 165°F / -40°c to 74°c
Leakage Rate Against Atmosphere	2*10-8atm cc/sec he
Cv value	0.08

Material of Parts

Body	316L,Brass
Bonnet	316L. Brass
Diaphragm	316L
Strainer	316L(10mm)
Seat	PCTFE,PTEE,Vespel
Spring	316L
Plunger valve core	316L

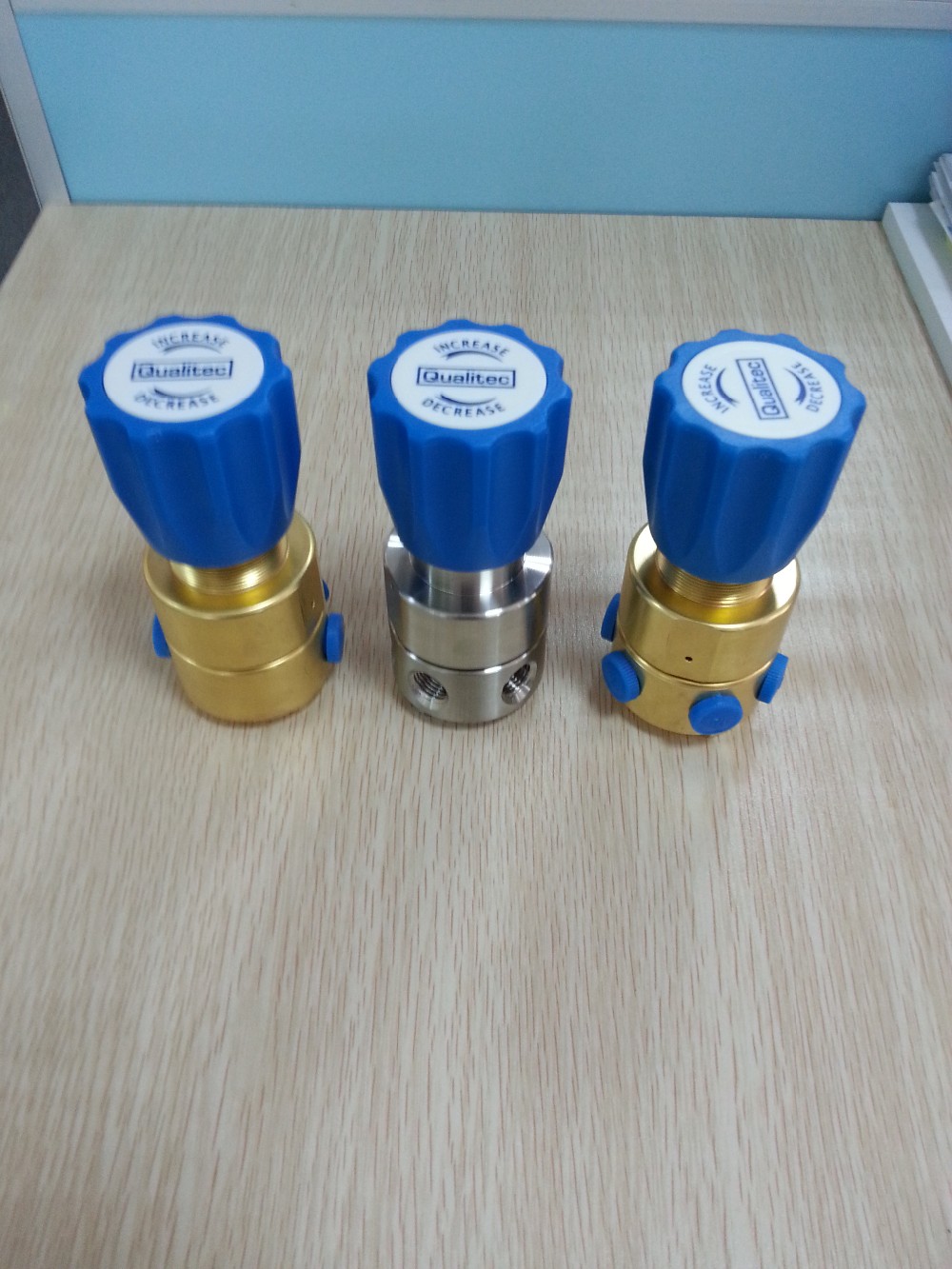

Detailed Image

gauge: one (Mpa, PSI/bar)

Mount: Panel

Specialty Gas Two Gauge CGA580 Nitrogen High Pressure Regulator

Details:

Body ports:four

Guage:two (PSI/bar)

Inlet connection:CGA580

Outlet connection: 1/4 O.D fittings. (can be chosen)

Details:

Knob: you can choose Black or Blue.

Body Material: stainless steel 316L, Brass and Nickel plated brass are available.

Gauge: No, one, two as your request.

Inlet and outlet connection: equipped them as your request.

Ordering Information

ORDERING INFORMATION

R11	L	B	D	F	G	00	00	P
Item	Body Materia	Body Hole	Inlet pressure	Outlet pressure	Pressure gauge	Inlet size	Outlet size	mark
R11	L:316	A	D:3000 psi	F:0-500 psi	G:MPa gauge	00:1/4 " NPT (F)	00: 1/4 " NPT(F)	P:Panel mounting
	B:Brass	B	E:2200 psi	G:0-250 psi		01:1/4 " NPT (M)	01: 1/4 " NPT(M)	N:Needle valve
		D	F:500 psi	l:0-100 psi	P:Psig/bar gauge	23: CGA330	10:1/8 " OD	N:Needle valve
		G		K:0-50 psi		24: CGA350	11:1/4 " OD	D:Diaphragm valve
		J		L:0-25 psi	W:No gauge	28: CGA660	12:3/8 " OD
		M				28: CGA660	15:6mm OD
						30: CGA590	16:8mm OD
						52: G5/8 "-RH(F)
						63: W21.8-14H(F)
						64: W21.8-14LH(F)

Flow Chart

APPLICATIONS

FAQ

Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.

Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.

Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.

Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
